	Superlight	JTL CORPORATION 14747 ARTESIA BLVD., 3-E LA MIRADA, CA 90638 TEL: (714)670-6626 FAX: (714)670-8836 E-MAIL: SERVICE@JTLCORP.COM

Superlight™
If you are in the market for an efficient, easy to use, dependable light for your digital, video, or black/white film shooting, the JTL Superlight is the absolute best. This light provides you with up to 1,200W of output power with a continuous variable adjuster.
For safety reasons, the Superlight will turn off automatically if there is a danger of overheating, and the blower will keep running to cool the light down to the regulated temperature, at which time the light will turn back on automatically.

JTL Superlight presents a unique combination of the latest technology:
- Tungsten light
- Power adjustable: continuous
- Optical output bulbs: 1,200W and 1,000W
- Self focused detachable halogen quartz bulb
- Enhanced cooling fan
- Built-in thermostat (to counter overheating)
- Patented stand fixture (gravity balanceable)
- Dual locking stand adapter

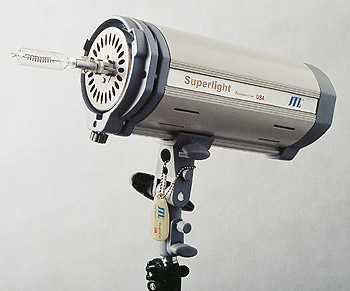

Code: 2818 Superlight Body

Specifications

Power Supply:	AC 110-130V/60 Hz
Color Temperature:	3250K/1200W, 3200K/1000W
Output:	1,200W, & 1,000W
Bulb Lift Time:	200Hrs/1200W, 400Hrs/1000W
Power Setting:	From 1/16 to Full Continuously
Beam Width:	>55°
H.Q. Bulb Base:	G 9.5 Two Pin
Cooling Fan:	Yes
Thermostat:	90°C
Fuse:	10A
Weight:	4.4 Lb

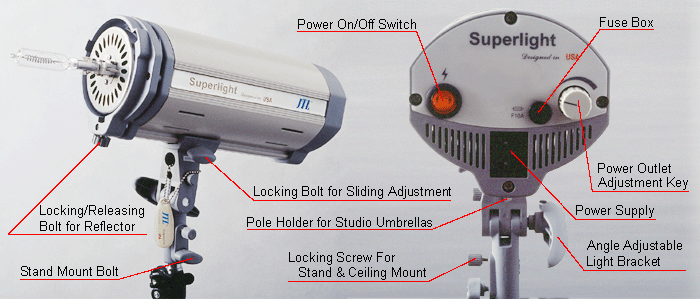

Control Panel

Models of the Superlight
Code: 2802 Superlight with 1000W Bulb
Code: 2812 Superlight with 1200W Bulb

Each Unit of Superlight Contains

Qty	Description
1	Superlight Body with Built-in Fan Cooler
1	H.Q. Bulb
1	7" Standard Reflector
1	15' Power Cable

Accessories

Code	Description
2108	4 Leaf Barn Doors
2109	15' Power Cable
2813	1000W H.Q Bulb
2814	750W H.Q Bulb
2815	500W H.Q. Bulb
2819	1200W H.Q. Bulb
2825	10A Fuse
2826	15A Fuse
2525-1	36"x36" Soft Box
2549-1	40"x28" Soft Box
Variable	Reflectors & Umbrellas

Code: 2109

Code: 2825
Code: 2826

Code: 2108

Code: 2813
Code: 2814
Code: 2815
Code: 2819

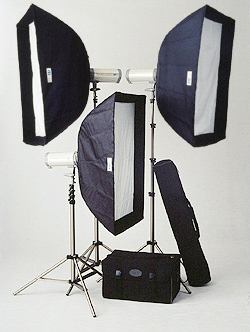

Superlight Kit

Code: 933000 TL-3000 Superlight Kit
Contents

Code	Description	Qty
2818	Superlight Unit	3
2813	H.Q. Bulb, 1000W	3
5013	800 Air Cushioned Stand	3
2549-1	40"x28" Soft Box	3
2703	3-Pin Soft Box Connector	3
8222	Large Studio Light Case	1
8224	Stand Carrying Bag	1

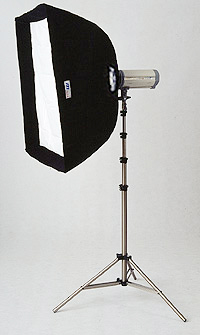

Code: 911200 SL-1200 Superlight Kit
Contents

Code	Description	Qty
2818	Superlight Unit	1
2819	H.Q. Bulb, 1200W	1
5013	800 Air Cushioned Stand	1
2525-1	36"x36" Soft Box	1
2703	3-Pin Soft Box Connector	1
