JTLcorp2005


	AC Slave	JTL CORPORATION 14747 ARTESIA BLVD., 3-E LA MIRADA, CA 90638 TEL: (714)670-6626 FAX: (714)670-8836 E-MAIL: SERVICE@JTLCORP.COM

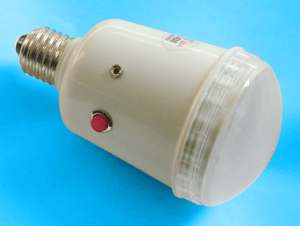

Code: 1013 S-45M Master AC Slave
Output:	45WS
Guide No. (ISO 100, Ft):	90
Power Supply:	AC 110-130V, 60Hz
Triggering:	Slave, Synch Cord & Test
Synch:	Yes
Flash Duration:	1/1000 – 1/500 Sec.
Flash Tube Life:	About 5000 Cycles
Recycle Time:	3 Sec.
Beam Width:	≥ 55°
Slave Sincerity (Ft):	> 35
Color Temperature:	5600K
Size:	3" Diameter by 5 1/2" Long

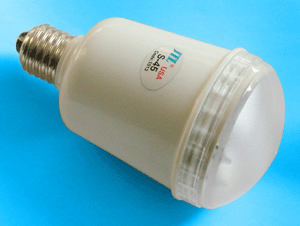

Code: 1012 S-45 AC Slave
Output:	45WS
Guide No. (ISO 100, Ft):	90
Power Supply:	AC 110-130V, 60Hz
Triggering:	Slave
Synch:	No
Flash Duration:	1/1000 – 1/500 Sec.
Flash Tube Life:	About 5000 Cycles
Recycle Time:	3 Sec.
Beam Width:	≥ 55°
Slave Sincerity (Ft):	> 35
Color Temperature:	5600K
Size:	3" Diameter by 5 1/2" Long

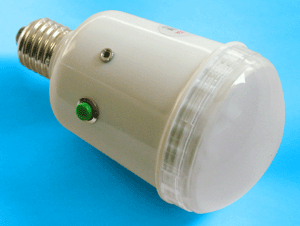

Code: 1010 S-25M Master AC Slave
Output:	25WS
Guide No. (ISO 100, Ft):	72
Power Supply:	AC 110-130V, 60Hz
Triggering:	Slave, Synch Cord & Test
Synch:	Yes
Flash Duration:	1/1000 – 1/500 Sec.
Flash Tube Life:	About 5000 Cycles
Recycle Time:	3 Sec.
Beam Width:	≥ 55°
Slave Sincerity (Ft):	> 35
Color Temperature:	5600K
Size:	3" Diameter by 5 1/2" Long

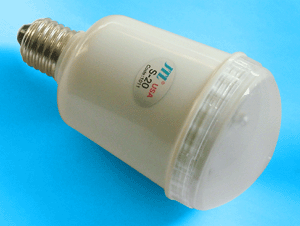

Code: 1011 S-20 Wide Angle AC Slave
Output:	20WS
Guide No. (ISO 100, Ft):	33
Power Supply:	AC 110-130V, 60Hz
Triggering:	Slave
Synch:	No
Flash Duration:	1/1000 – 1/500 Sec.
Flash Tube Life:	About 5000 Cycles
Recycle Time:	3 Sec.
Beam Width:	≥ 160°
Slave Sincerity (Ft):	> 35
Color Temperature:	5600K
Size:	3" Diameter by 5 1/2" Long

Accessories

Code: 1021

Code: 1026

Code: 1024

Code: 1023

Code: 1025

Code	Description
1021	4 Color Filter Set: Red, Green, Blue & Yellow
1023	Umbrella/Light Holder: On/Off Switch, Stand Adapter & Umbrella Hole
1024	AC Slave Clamp w/ 3/8" Adapter
1025	Umbrella Holder w/Clamp & 3/8" Adapter (1023+1024)
1026	Synch Cord for S-25M & S-45M

AC Slave Kit

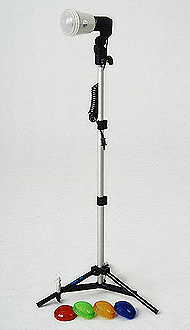

Code: 91020 SL-20 Basic Back Light Kit
Contents:

Code	Description	Qty
1011	S-20 Wide Angle AC Slave	1
5010	300 Back Light Stand	1
1021	4 Color Filter Set	1
1023	Umbrella/Light Holder	1

Code: 91045 SL-45 Basic AC Strobe Kit
Contents:

Code	Description	Qty
1013	S-45M Master AC Slave	1
5011	600 Light Stand	1
1023	Umbrella/Light Holder	1
4011	33" White Umbrella	1

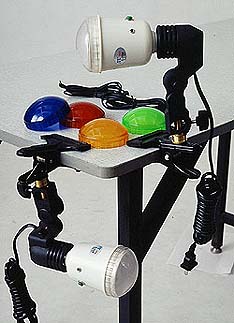

Code: 92050 DL-50 Copy-Light Kit
Contents:

Code	Description	Qty
1010	S-25M Master AC Slave	2
1023	Umbrella/Light Holder	2
1024	AC Slave Clamp	2
1021	4 Color Filter Set	1

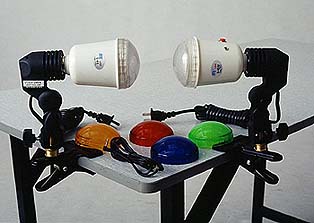

Code: 92091 DL-90 AC Clamp Kit
Contents:

Code	Description	Qty
1013	S-45M Master AC Slave	1
1012	S-45 AC Slave	1
1023	Umbrella/Light Holder	2
1024	AC Slave Clamp	2
1021	4 Color Filter Set	1
