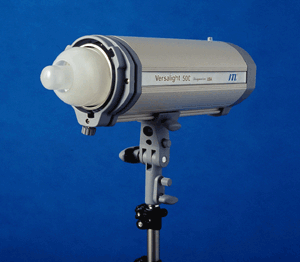

 Versalight™
The Versalight has a state-of-the-art design for
professional photographers with a variety of technical requirements.
Because of its versatility, it can be used as main light, a fill light,
a hair light, or as the backlight for group portraits.
This
series is available in 105-120V, 60Hz and 220-240V, 50Hz (special
order only).
The Versalight offers users
a unique combination of innovative features:
- Detachable flash tube (color-temperature corrected) with frosted
glass diffuser
- Continuous power adjustor with fine-setting clutches
- Built-in thermostat (to prevent over-heating)
- Patented stand fixture (gravity balanceable)
- Optical diode indicators for power setting
- Wide range built-in slave (360 degree)
- Dual-locking stand adapter
- Enhanced fan-cooler (for Versalight 1000/800/500 only)

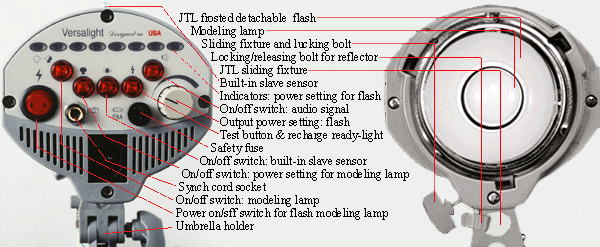

Posterior Control Panel

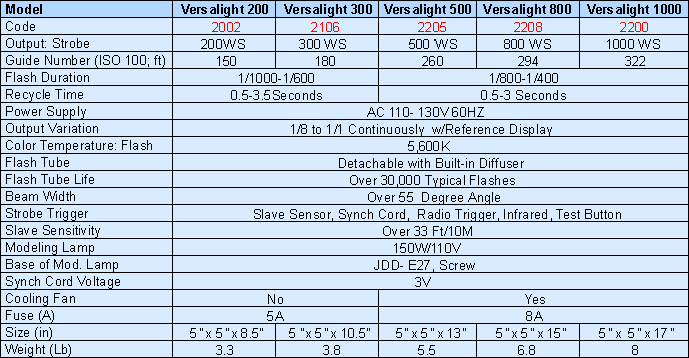

Specification
|
| Code: 2200 |
Versalight 1000 |
| Output: |
1000WS |
| Color Temperature: |
5600K |
| Recharge Time: |
0.5-3 Sec. in Full |
| Flashing Duration: |
1/800 每 1/400 Sec. |
| Power Supply: |
AC 110 每 130V/60 Hz |
| Guide No.(ISO 100, Ft): |
322 |
| Flash Tube Life: |
≡ 30000 Flashes |
| Triggering: |
Slave, Synch Cord & Test Button |
| Power Setting: |
1/8 to Full Continuously w/Reference Display |
| Voltage of Synch Cord: |
3V |
| Fuse: |
8A |
| Weight: |
8 Lb |
|
|
| Code: 2208 |
Versalight 800 |
| Output: |
800WS |
| Color Temperature: |
5600K |
| Recharge Time: |
0.5-3 Sec. in Full |
| Flashing Duration: |
1/800 每 1/400 Sec. |
| Power Supply: |
AC 110 每 130V/60 Hz |
| Guide No.(ISO 100, Ft): |
294 |
| Flash Tube Life: |
≡ 30000 Flashes |
| Triggering: |
Slave, Synch Cord & Test Button |
| Power Setting: |
1/8 to Full Continuously w/Reference Display |
| Voltage of Synch Cord: |
3V |
| Fuse: |
8A |
| Weight: |
6.8 Lb |
|
|
| Code: 2205 |
Versalight 500 |
| Output: |
500WS |
| Color Temperature: |
5600K |
| Recharge Time: |
0.5-3 Sec. in Full |
| Flashing Duration: |
1/800 每 1/400 Sec. |
| Power Supply: |
AC 110 每 130V/60 Hz |
| Guide No.(ISO 100, Ft): |
260 |
| Flash Tube Life: |
≡ 30000 Flashes |
| Triggering: |
Slave, Synch Cord & Test Button |
| Power Setting: |
1/8 to Full Continuously w/Reference Display |
| Voltage of Synch Cord: |
3V |
| Fuse: |
8A |
| Weight: |
5.5 Lb |
|
|
| Code: 2106 |
Versalight 300 |
| Output: |
300WS |
| Color Temperature: |
5600K |
| Recharge Time: |
0.5-3.5 Sec. in Full |
| Flashing Duration: |
1/1000-1/600 Sec. |
| Power Supply: |
AC 110-130V/60 Hz |
| Guide No.(ISO 100, Ft): |
200 |
| Flash Tube Life: |
≡ 30000 Flashes |
| Triggering: |
Slave, Synch Cord & Test Button |
| Power Setting: |
1/8 to Full Continuously w/Reference Display |
| Voltage of Synch Cord: |
3V |
| Fuse: |
5A |
| Weight: |
3.8 Lb |
|
|
| Code: 2002 |
Versalight 200 |
| Output: |
200WS |
| Color Temperature: |
5600K |
| Recharge Time: |
0.5-3.5 Sec. in Full |
| Flashing Duration: |
1/1000-1/600 Sec. |
| Power Supply: |
AC 110-130V/60 Hz |
| Guide No.(ISO 100, Ft): |
150 |
| Flash Tube Life: |
≡ 30000 Flashes |
| Triggering: |
Slave, Synch Cord & Test Button |
| Power Setting: |
1/8 to Full Continuously w/Reference Display |
| Voltage of Synch Cord: |
3V |
| Fuse: |
5A |
| Weight: |
3.3 Lb |
|
Each Unit of
Versalight Contains:
| Code |
Qty |
Description |
| Variable |
1 |
Versalight Body |
| Variable |
1 |
Frosted Detachable Flash Tube |
| 2519 |
1 |
Modeling Lamp, 150W |
| 2223 |
1 |
7" Standard Metal Reflector |
| 2109 |
1 |
Power Cable |
| 2521 |
1 |
Synch Cord |
| 2520 |
1 |
Protective Cover |
| |
1 |
JTL Stand Sliding Fixture w/Umbrella Holder |
| |
1 |
Owner's Manual & Warranty Card |
|
Accessories
| Versalight
Kit |
 |
 |
|
 |
|
 |
 |

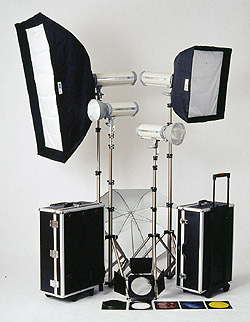

| Code: 942800 |

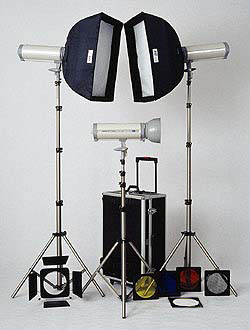

Code: 932400 |
Code: 931500 |

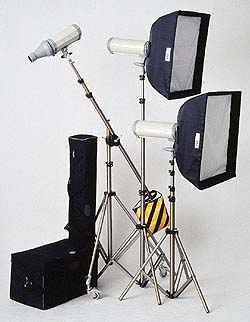

Code: 93193 |
Code: 93133 |

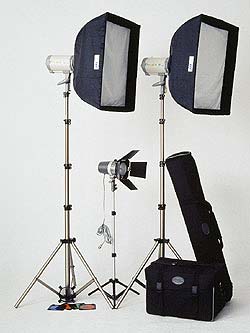

Code: 93503 |

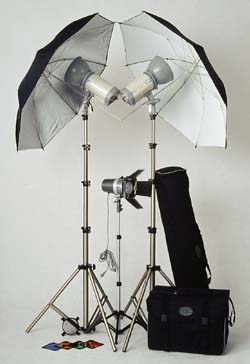

Code: 93500 |
 |
 |
 |
|
 |
 |
|
|

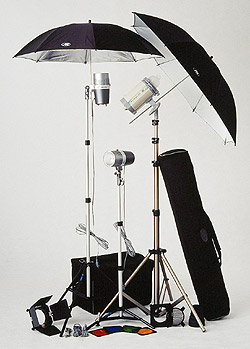

| Code: 93400 |

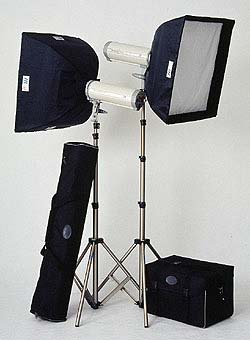

Code: 921601 |
Code: 921001 |

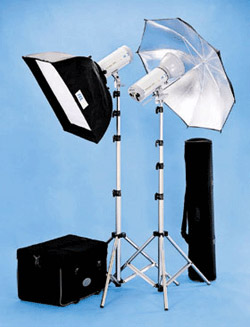

Code: 92602 |

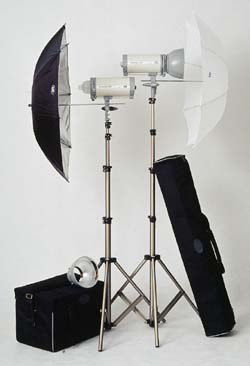

Code: 92601 |
Code: 92402 |
Code: 92401 |
|
 |
 |
 |
 |
 |
 |
|

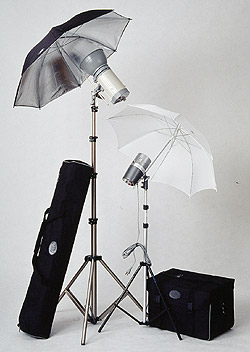

| Code: 92301 |
Code: 91502 |
Code: 91501 |
Code: 91304 |
Code: 91303 |
Code: 91302 |
Code: 91202 |
|
