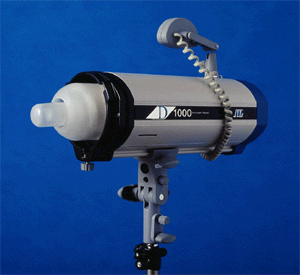

 Versalight™
D
As the newly developed JTL studio strobe
systems, the Versalight D series has a combination of high-tech elements.
It features infrared remote control, computerized memory, 360° digital
display, and a variety of patented lighting designs. With different
accessories, you can combine the features of the Versalight D series
with a JTL remote controller and your personal computer-you can use
your computer to specify the exact lighting environment that you desire,
and recreate previous lighting environments with the touch of a key.
The Versalight D can be used with the remote control (Code: 2310),
a computer, or simply alone, as a normal light (like a normal Versalight).
JTL Versalight D series is available in
105-120V, 60Hz and 220-240V, 50Hz (special order only).
Features:
- Digital adjustment and display on lighting functions
- 360° universal digital display and signal receiver for remote control
- Separate or simultaneous operation of up to 9 units of Versalight
D with JTL PC software, transmitters, and receivers
- Exact reproductions of past lighting environments saved in your
computer
- Two options to dump the power saved in capacitors: resistive (quiet)
dump or flashing dump
- Alarm system: continuous audio signal warning of any malfunction,
as well as a low power warning
- Built-in stabilizer for continuous output precision (±0.1 F.)
- Digital power adjustment (separate or simultaneous) for strobe and
modeling lamp
- Idle function to save electricity
- Detachable (customer-replaceable) flash tube with built-in diffuser
- Patented sliding-bracket to ensure light stability
- Built-in thermostat to avoid overheating
- Dual locking screws for studio rail system installation
- Aluminum alloy housing

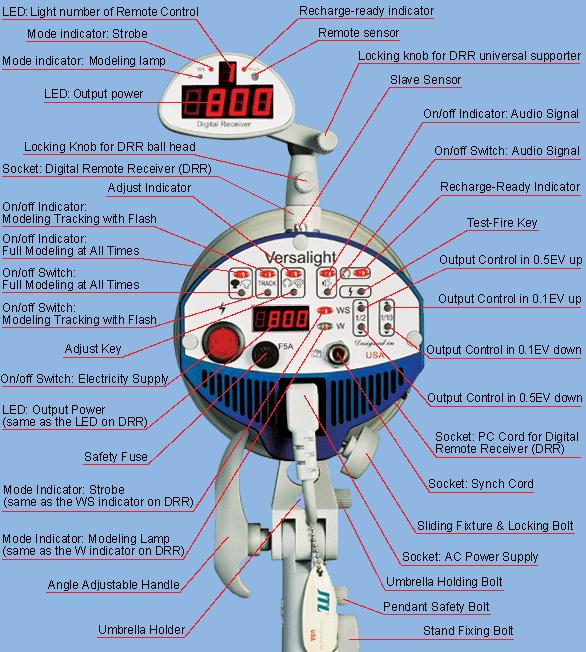

Posterior Control
Panel & Digital Remote Receiver

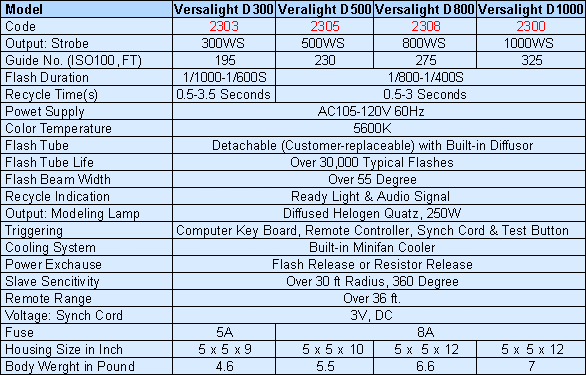

Versalight D Specifications
|
 |
| Code: 2300 |
Versalight D-1000 |
| Output Power: |
1000WS |
| Guide No.(ISO 100, Ft): |
325 |
| Power Supply: |
AC 110 – 130V/60 Hz |
| Recharge Time: |
0.5-3 Sec. In Full |
| Color Temperature: |
5600K |
| Flash Duration: |
1/800-1/400S |
| Triggering: |
Computer Key Board, Remote Controller, Synch Cord & Test Button |
| Power Setting: |
1/8 to Full Continuously w/Reference Display |
| Fuse: |
8A |
| Synch Cord Voltage: |
3V, DC |
| Weight: |
7 Lb |
|
 |
| Code:2308 |
Versalight D-800 |
| Output Power: |
800WS |
| Guide No.(ISO 100, Ft): |
275 |
| Power Supply: |
AC 110 – 130V/60 Hz |
| Recharge Time: |
0.5-3 Sec. In Full |
| Color Temperature: |
5600K |
| Flash Duration: |
1/800-1/400S |
| Triggering: |
Computer Key Board, Remote Controller, Synch Cord & Test
Button |
| Power Setting: |
1/8 to Full Continuously w/Reference Display |
| Fuse: |
8A |
| Synch Cord Voltage: |
3V, DC |
| Weight: |
6.6 Lb |
|
 |
| Code:2305 |
Versalight D-500 |
| Output Power: |
500WS |
| Guide No.(ISO 100, Ft): |
230 |
| Power Supply: |
AC 110 – 130V/60 Hz |
| Recharge Time: |
0.5-3 Sec. In Full |
| Color Temperature: |
5600K |
| Flash Duration: |
1/800-1/400S |
| Triggering: |
Computer Key Board, Remote Controller, Synch Cord & Test Button |
| Power Setting: |
1/8 to Full Continuously w/Reference Display |
| Fuse: |
8A |
| Synch Cord Voltage: |
3V, DC |
| Weight: |
5.5 Lb |
|
 |
| Code:2303 |
Versalight D-300 |
| Output Power: |
300WS |
| Guide No.(ISO 100, Ft): |
195 |
| Power Supply: |
AC 110 – 130V/60 Hz |
| Recharge Time: |
0.5-3.5 Sec. In Full |
| Color Temperature: |
5600K |
| Flash Duration: |
1/1000-1/600S |
| Triggering: |
Computer Key Board, Remote Controller, Synch Cord & Test
Button |
| Power Setting: |
1/8 to Full Continuously w/Reference Display |
| Fuse: |
5A |
| Synch Cord Voltage: |
3V, DC |
| Weight: |
4.6 Lb |
|
| Each Unit of Versalight D Contains: |
| Code: |
Description |
QTY |
| Variable |
Versalight D Body with Built-in Stand Bracket |
1 |
| 2311 |
Digital Remote Receiver (DRR) |
1 |
| Variable |
Replaceable Flash Tube Covered By Diffuser |
1 |
| 2317 |
Dual Enveloped H.Q Modeling Lamp, 250W |
1 |
| 2519 |
Dual Enveloped H.Q. Modeling Lamp,150W |
1 |
| 2223 |
Standard Metal Reflector |
1 |
| 2109 |
15' Power Cable |
1 |
| 2521 |
15' Synch Cord |
1 |
| 2520 |
Protective Cover |
1 |
| |
Extra Fuse |
2-3 |
| |
User's Manual & Warranty Card |
1 |
Optional Accessories:
 |
Code:
2310
Digital Remote Controller (DRC)
Working together with the DRR, the JTL DRC allows you to use the Versalight
D precisely from up to 36 feet away. It can control up to 9 Versalight
D units separately or simultaneously, and has an idle function that
is not available on rear control panel of your Versalight D.
|
|
Code: 2311
Digital Remote Receiver (DRR)
The DRR receives the signal from either the remote controller, or
the transmitter. After installing the DRR to the top of light housing,
turn on your Versalight D and the digital display will show you the
light number and output reading that it is receiving. The 360° adjustable
supporting holder ensures that the DRR always faces the signal resource
(the DRR is included when you purchase a JTL Versalight D, but additional
receivers can be purchased separately as well). |
|
Code:2320 Computer Remote Accessory
Kit |
 |

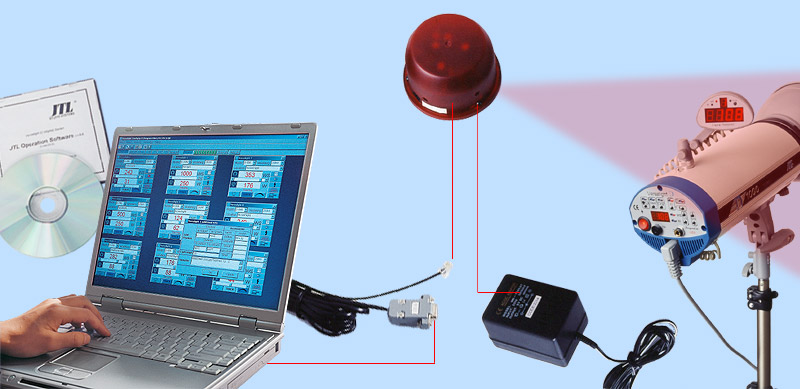

a. Computer Remote Transmitter (CRT)
The CRT receives signals from your PC, and in turn transmits up to
nine different specifications to a total of 9 units—each unit can
include as many lights as you wish, each with a receiver attached
(a unit is a group of lights all following the same specifications).
Working together with DRR, your CRT will shift your lighting operation
from a manual setting of specifications, to the computer keyboard.
You may either send your remote control signal to each individual
Versalight D after finishing your power setting specifically, or send
them once as a whole for all Versalight D units. You may also save
previous lighting specification files onto your hard drive and reuse
the settings to replicate previous lighting scenes.
The Computer Remote Transmitter is best used mounted directly onto
the ceiling, but can also be mounted on three types of JTL stands—the
background support stand, cinema stand (with a 40" extendable arm
only—not the 20"), and/or boom kit (Code: 5100). With the background
stand, the CRT is screwed into the clamp (Code: 1024), which is then
clamped onto the horizontal pole of the stand, above the shot. On
the cinema stand, the CRT (screwed into the clamp) is clamped onto
the extendable arm of the stand, which can then be extended out as
far as you wish. Finally, with the boom kit, the CRT (also screwed
into the clamp) is clamped onto the extendable arm, which can then
be raised accordingly.

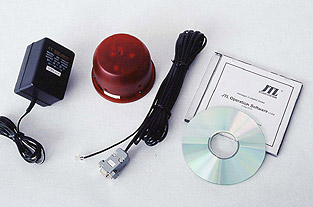

b. Supplementary Elements
These include a phone wire to link up the computer with the CRT, a
power adapter for the CRT, and a free CD with the JTL Versalight D
operation software. |
Accessories

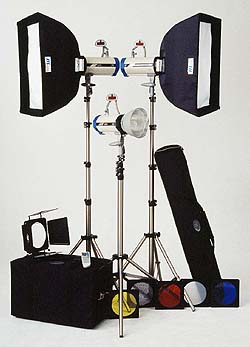

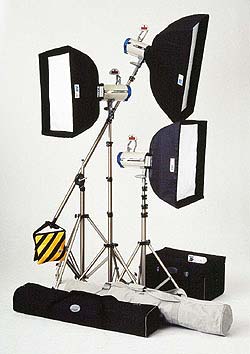

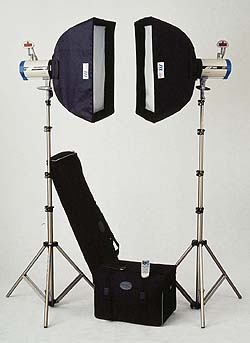

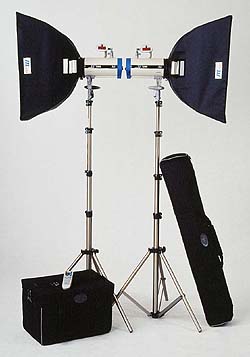

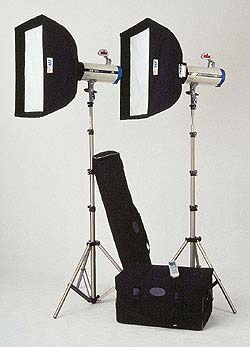

Versalight D Kit
 |
 |
 |
 |
 |
 |
 |
| Code: 931303 |
Code: 931300 |

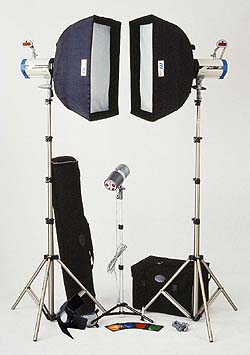

Code: 93760 |
Code: 921602 |
Code: 921002 |

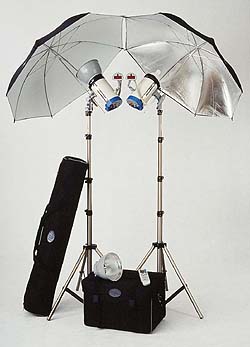

Code: 92605 |
Code: 92604 |
|
